RB Crossed Roller Bearings

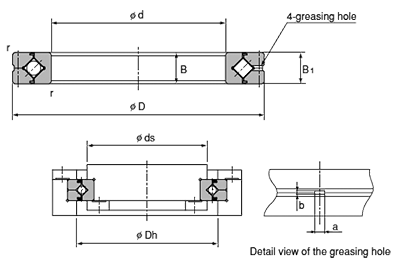

Drawing

Datasheet

Bearing No.	Dimensions								Mass
Bearing No.	d	D	dp	BB1	Greasing hole		ds	Dh
–	mm	mm	mm	mm	a	b	mm	mm	kg
RB 2008	20	36	27	8	2	0.8	23.5	30.5	0.04
RB 2508	25	41	32	8	2	0.8	28.5	35.5	0.05
RB 3010	30	55	41.5	10	2.5	1	37	47	0.12
RB 3510	35	60	46.5	10	2.5	1	41	51.5	0.13
RB 4010	40	65	51.5	10	2.5	1	47.5	57.5	0.16
RB 4510	45	70	56.5	10	2.5	1	51	61.5	0.17
RB 5013	50	80	64	13	2.5	1.6	57.4	72	0.27
RB 6013	60	90	74	13	2.5	1.6	68	82	0.3
RB 7013	70	100	84	13	2.5	1.6	78	92	0.35
RB 8016	80	120	98	16	3	1.6	91	111	0.7
RB 9016	90	130	108	16	3	1.6	98	118	0.75
RB 10016	100	140	119.3	16	3.5	1.6	109	129	0.83
RB 10020	100	150	123	20	3.5	1.6	113	133	1.45
RB 11012	110	135	121.8	12	2.5	1	117	127	0.4
RB 11015	110	145	126.5	15	3.5	1.6	122	136	0.75
RB 11020	110	160	133	20	3.5	1.6	120	143	1.56
RB 12016	120	150	134.2	16	3.5	1.6	127	141	0.72
RB 12025	120	180	148.7	25	3.5	2	133	164	2.62
RB 13015	130	160	144.5	15	3.5	1.6	137	152	0.72
RB 13025	130	190	158	25	3.5	2	143	174	2.82
RB 14016	140	175	154.8	16	2.5	1.6	147	162	1
RB 14025	140	200	168	25	3.5	2	154	185	2.96
RB 15013	150	180	164	13	2.5	1.6	157	172	0.68
RB 15025	150	210	178	25	3.5	2	164	194	3.16
RB 15030	150	230	188	30	4.5	3	173	211	5.3
RB 16025	160	220	188.6	25	3.5	2	173	204	3.14
RB 17020	170	220	191	20	3.5	1.6	184	198	2.21
RB 18025	180	240	210	25	3.5	2	195	225	3.44
RB 19025	190	240	211.9	25	3.5	1.6	202	222	2.99
RB 20025	200	260	230	25	3.5	2	215	245	4
RB 20030	200	280	240	30	4.5	3	221	258	6.7
RB 20035	200	295	247.7	35	5	3	225	270	9.6
RB 22025	220	280	250.1	25	3.5	2	235	265	4.1
RB 24025	240	300	269	25	3.5	2	256	281	4.5
RB 25025	250	310	277.5	25	3.5	2	265	290	5
RB 25030	250	330	287.5	30	4.5	3	269	306	8.1
RB 25040	250	355	300.7	40	6	3.5	275	326	14.8
RB 30025	300	360	328	25	3.5	2	315	340	5.9
RB 30035	300	395	345	35	5	3	322	368	13.4
RB 30040	300	405	351.6	40	6	3.5	326	377	17.2
RB 35020	350	400	373.4	20	3.5	1.6	363	383	3.9
RB 40035	400	480	440.3	35	5	3	422	459	14.5
RB 40040	400	510	453.4	40	6	3.5	428	479	23.5
RB 45025	450	500	474	25	3.5	1.6	464	484	6.6
RB 50025	500	550	524.2	25	3.5	1.6	514	534	7.3
RB 50040	500	600	548.8	40	6	3	526	572	26
RB 50050	500	625	561.6	50	6	3.5	536	587	41.7
RB 60040	600	700	650	40	6	3	627	673	29
RB 70045	700	815	753.5	45	6	3	731	777	46
RB 80070	800	950	868.1	70	6	4	836	900	105
RB 90070	900	1050	969	70	6	4	937	1001	120
RB 1000110	1000	1250	1114	110	6	6	1057	1171	360
RB 1250110	1250	1500	1365.8	110	6	6	1308	1423	440
